Change Your Perspective

Capability meets affordability with the G3X™. Available from $4,375.

OverviewLive the Suite Life

All the capabilities you want in a true “glass cockpit” are brought together in the G3X flight display system — with single display systems priced as low as $4,375. Designed specifically for experimental/kitplane and light sport panels, this scalable system lets you grow as your needs and budget allow.

This easy-to-install suite can contain up to 3 redundant PFD/MFD configurable displays, all of which contain a built-in GPS and big, bright sunlight readable 7" high-resolution WVGA screen. The G3X provides full primary flight display (PFD) attitude/directional guidance along with electronic engine gauges, terrain/obstacles alerting, geo-referenced FliteCharts® and SafeTaxi® airport diagrams. Optional SiriusXM® weather, ADS-B “In” with traffic and weather, ADS-B “Out” transponder, and angle of attack sensor can all be added easily. An affordable Garmin autopilot system is also available with advanced features like coupled approaches and auto-trim, as well as flight director, indicated air speed hold and straight and level button when installed with an optional control panel.

You can choose a single- or multi-display configuration with separate PFD and MFD displays — or you can even add a third co-pilot’s display, if desired.

*GPS receiver has a nominal operating velocity range of 0 – 800 kts (411 m/s).

System OptionsOne System. Many Solutions.

The integration and versatility provided by the G3X electronic flight displays makes it easy to customize the ideal panel layout for your aircraft. You can start with a single display — or use as many as 3 displays — to fit the space, avionics stack, and budget available. Shown here are just a few examples of what’s possible and practical in a G3X installation.

Single Display

The versatile G3X panel-mount glass displays work like building blocks, allowing you to grow your system to fit your needs and budget. You can start with a single display that combines full primary flight (PFD) attitude/directional guidance with electronic engine monitoring and moving-map multifunction (MFD) capabilities.

Dual Display

Want a 2-screen flight deck layout with separate PFD and MFD displays? That’s an easy upgrade with G3X. You get a large-format attitude and heading display, paired with your moving map and engine gauge data. A built-in Garmin network interface allows for full reversionary capability on either screen.

Triple Display

For the ultimate in non-certified glass cockpit suites, this configuration adds a third display for the co-pilot’s position. The Garmin network interface allows for a maximum of three displays to be interlinked in your panel. You can use it as an optional second MFD to display even more data at once — like dedicated engine information and moving map.

HardwareCombine Simplicity with Sophistication

The multi-tasking Garmin displays that comprise your G3X suite are scaled to fit the panels (and price ranges) of most experimental/kitbuilt and light sport aircraft.

Each display features a big 7" high-resolution WVGA screen, built-in high-sensitivity WAAS GPS receiver, rotary joystick cursor control for data entry, redundant power inputs, and soft keys for mode selection. There’s a front-loading SD™ card slot for easy updating of software and databases. Plus, a built-in aviation basemap helps provide realistic visual reference — identifying cities, roads, rivers, lakes and other guide points. You can choose topographic VFR or airway-style IFR map modes. And there’s also a built-in terrain elevation database that uses color-coding to alert you as you approach potentially hazardous terrain. Both overhead and vertical profile views of this data are graphically depicted on the terrain page.

Each G3X system comes with the following:

  • 1 or more displays (with or without XM weather capability)
  • Air Data, Attitude and Heading Reference System (ADAHRS)
  • Magnetometer, which determines the aircraft’s magnetic heading
  • Outside air temperature probe
  • Engine Indication System (EIS) interface (engine sensor kits sold separately)

Integrated AutopilotAdd an Affordable AFCS

All it takes is the addition of Garmin’s affordable GSA 28 “smart” servo units to give your G3X a range of autopilot capabilities similar to those provided by our top-end flight control technology. You have the option of purchasing 1 servo (roll only), or 2 servos (pitch + roll) to add the level of capability you want. Even better, the Garmin servo provides a built-in interface to drive a customer supplied trim servo at no extra cost. When the autopilot is off, the servo provides speed scheduling for the manual trim commands. When the autopilot is on, the servo adjusts to constantly keep the aircraft trimmed. It also features a gear train with engagement clutch and the ability to back drive the brushless DC motor, providing multiple levels of safety without the use of a shear pin. Plus, servo software updates are done over the CAN bus using the G3X SD card, eliminating the need to send the servo back to the manufacturer for updates.

The optional GMC 305 control panel is a dedicated interface unit that provides advanced autopilot modes like indicated airspeed hold, independent flight director, and third axis yaw damper (when installed with appropriate servos). A control wheel integrated into the GMC 305 makes for easier pitch, vertical speed and airspeed adjustments. Plus, for added safety, the panel’s advanced LVL mode button commands the autopilot to help restore your aircraft to straight-and-level flight. The GMC 305 and GMC 307 also provide redundant control of the G3X autopilot for LVL mode, pitch/roll hold modes, altitude hold mode and control wheel steering (CWS). Installation of the system is simple and straightforward, with industry-standard servo mounting kits available — as well as airframe-specific versions for the popular Van’s RV series (RV-4/6/7/8/9/10 models).

With installation of the G3X autopilot servos, you’ll also obtain Garmin Electronic Stability and Protection (ESP-X) to provide assistance in maintaining the aircraft in stable flight. When you exceed user-selected pitch, roll or airspeed limitations while hand-flying the aircraft, ESP-X provides gentle nudges on the flight controls to lessen the aircraft’s pitch attitude or bank angle—and that correcting force grows stronger as those exceedances increase. In addition, you’ll see visual cues on the displays of G3X and G3X Touch indicating that ESP-X is engaged: Yellow chevrons provide visual pitch guidance, and configurable roll-limit indicators indicate where ESP-X engages to provide bank guidance. As you take corrective action, ESP-X fades, and it turns off when you return to a normal flight envelope. Conversely, if the system activates for more than fifteen seconds—for example, if you become incapacitated—the autopilot engages with the flight director in Level Mode, bringing the aircraft to level flight until you command otherwise. While ESP-X will not recover an aircraft in all in-flight situations, the system does provide your experimental and light sport aircraft an extra safeguard.

But ESP-X goes beyond providing pitch and bank envelope protection to also offer high- and low-airspeed protection. In a high-airspeed situation, ESP-X engages the G3X autopilot servos to increase your pitch attitude, while built-in parameters further prevent the aircraft from exceeding G-limit load factors. In low airspeed situations, ESP-X engages to provide a gentle pitch-down force to reduce the likelihood of a stall—and ESP-X automatically disables when the aircraft is operating within 200 feet of the ground. In addition, pitch, roll and airspeed envelope protection parameters are all customizable, and for flight training or aerobatics, you can easily inhibit Garmin ESP-X within the automatic flight control system menu of G3X and G3X Touch, or with an optional switch in the panel.

Autopilot Options for G3X


Configured with 1 GSA 28 integrated servo for roll only autopilot


Configured with 2 GSA 28 integrated servos for pitch and roll autopilot

Optional GMC 305 Control Panel

A separate autopilot control panel for dedicated mode selection, as well as access to additional autopilot modes including Indicated Airspeed Hold (IAS), Level Recovery (LVL), independent flight director and Yaw Damper (YD)

Optional GMC 307 Control Panel

A separate autopilot control panel for dedicated mode selection with heading and altitude knobs, as well as access to additional autopilot modes including Indicated Airspeed Hold (IAS), Level Recovery (LVL), independent flight director and Yaw Damper (YD).

FeaturesSee the Big Picture

Click on each photo below to learn more about that feature.

Attitude Awareness
Attitude Awareness

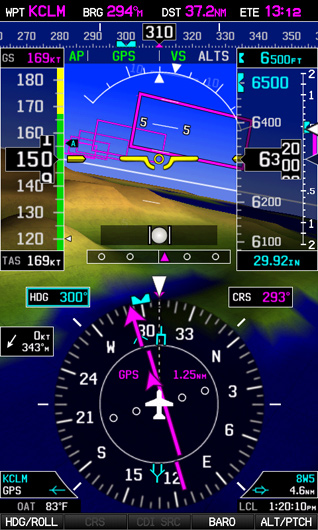

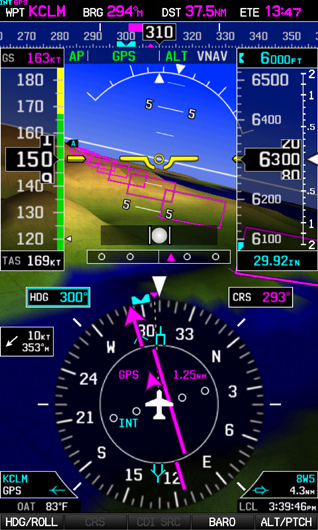

In place of sensitive mechanical gyro instruments, the G3X system uses the latest in GPS-aided ADAHRS (Air Data, Attitude Heading and Reference System). Based on solid-state technology derived from Garmin’s popular certified G1000 system, the ADAHRS provides accurate and reliable referencing of aircraft attitude, heading, rate, vector and acceleration data. Because the ADAHRS is independent of the magnetometer, it can be mounted in any of 16 positions without special magnetometer considerations. For additional redundancy, the G3X system optionally supports multiple ADHARS, sharing the input of a single magnetometer and outside air temperature probe, or with a redundant magnetometer and probe if preferred.

Rich, Interactive Map and more
Rich, Interactive Map and more

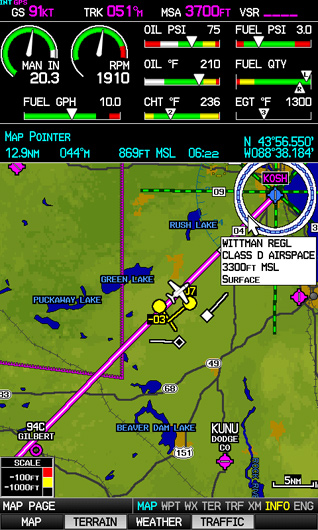

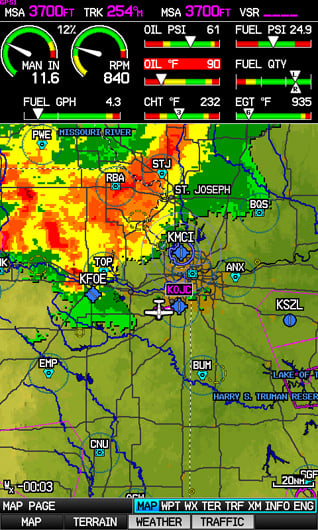

The G3X contains a powerful, rich and detailed moving map display. If you’ve ever wondered at any given time how far away upcoming airspace, inclement weather, traffic or anything on the moving map was, G3X makes it a cinch! Simply press the knob and scroll anywhere on the map and using your current position, the G3X displays the distance, bearing, and time to that location on the map as well as the elevation and GPS coordinates of that location.

Other powerful features include an “Always On” bearing pointer to the nearest airport, extended runway centerlines, easy creation of user way points, altitude alerting tones when leaving the indicated bugged altitude, display of pilot defined checklists, and flight and engine data logging of up to a 1,000 hours on a single 2 GB SD card.

Engine Instruments
Engine Instruments

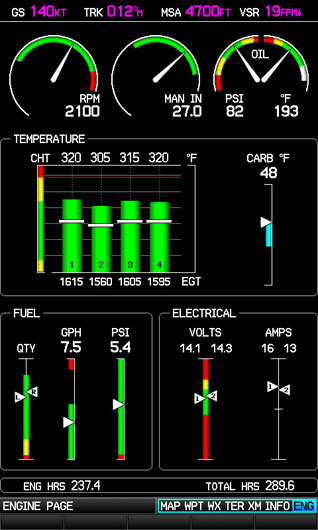

Configurable EIS displays of engine, fuel and systems data can be accessed and monitored on the G3X via the system’s ADAHRS remote sensor unit. Engine Sensor Kits priced as low as $299 are available for popular models of Lycoming, Continental, Rotax and Jabiru engines.

Synthetic Vision
Synthetic Vision

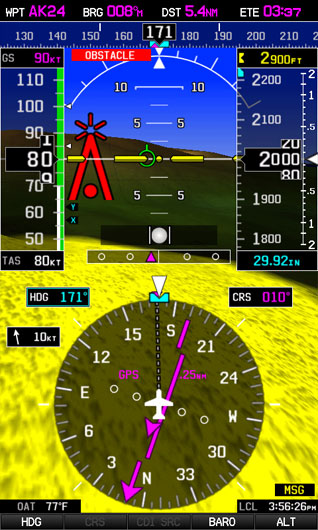

With Garmin SVX™ synthetic vision technology for the G3X, you’ll always know what lies ahead — even in solid IFR or nighttime VFR conditions. Using sophisticated graphics modeling, SVX provides a 3-D “virtual reality” perspective for enhanced situational awareness. Synthetic Vision displays terrain using different shades of color and even includes streams, lakes and large bodies of water. Even more it displays obstacles, traffic (optional), the airport environment that includes airport sign posts and the runway. For additional awareness, your route is outlined with “windows” on the PFD screen. This virtual “highway in the sky” varies in size to depict the flight path in perspective, making it easy to visualize enroute legs, course intercepts, final approach courses, runway thresholds and more.

SiriusXM Weather & Radio
SiriusXM Weather & Radio

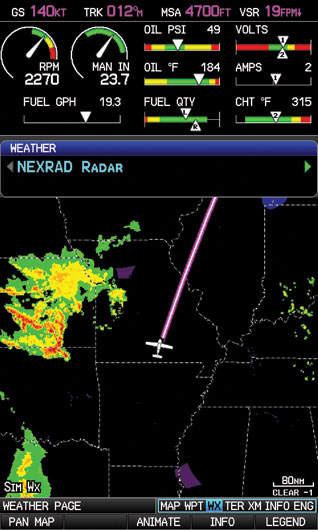

Optional XM™ WX Satellite Weather is supported by the G3X with optional subscription. When partnered the Garmin datalink receiver built into the GDU 375, the system can display graphical NEXRAD radar, METARS, TAFS, TFRs, winds aloft, lightning strikes, storm cells and more. What’s more, over 170 channels of XM audio can also be enjoyed through the interface.

SafeTaxi® Diagrams
SafeTaxi® Diagrams

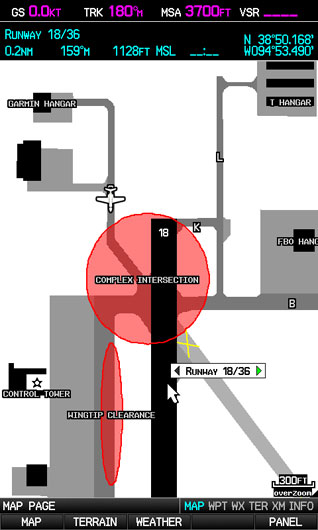

When your aircraft touches down, built in Garmin SafeTaxi airport diagrams are there to help you navigate many U.S., Canadian and European airports with confidence. You’ll see a depiction of your aircraft’s exact location overlaid onto taxiways, runways, hot spots, hangars and other airport facilities.

Terrain and Obstacles
Terrain and Obstacles

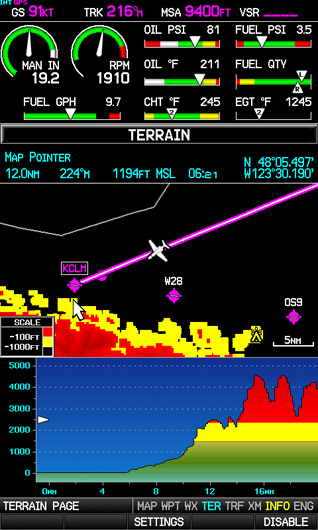

In addition to the worldwide Garmin land basemap that helps identify cities, roads and bodies of water along your flight path, the G3X also provides a built-in database of both terrain elevation and obstacles that overlay on the main moving map page. And the dedicated terrain page helps to depict terrain and obstacles of concern based on the aircraft’s current altitude. The terrain page can be displayed using a 2D map, profile view or both (pictured). While not directly focusing on the display, both visual and audible alerts help provide an automated warning to the pilot. Even more, the G3X provides a 500’ callout for additional confirmation while on approach for landing at the destination airport.

FliteCharts® Procedures
FliteCharts® Terminal Procedures

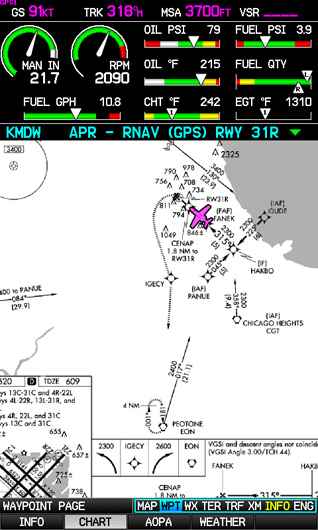

The G3X system comes preloaded with geo-referenced Garmin FliteCharts, which displays your position on AeroNav–format terminal procedures including IFR approach plates for thousands of U.S. airports. Optional geo-referenced ChartView is also available for those who prefer Jeppesen-style charts (subscription required).

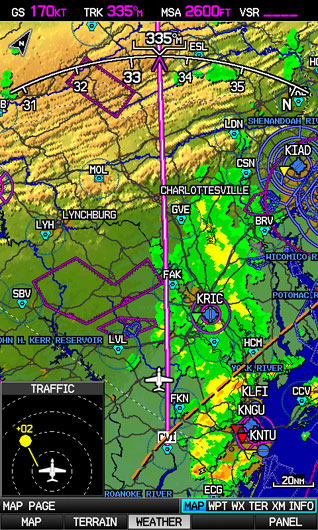

Traffic Advisories
Traffic Advisories

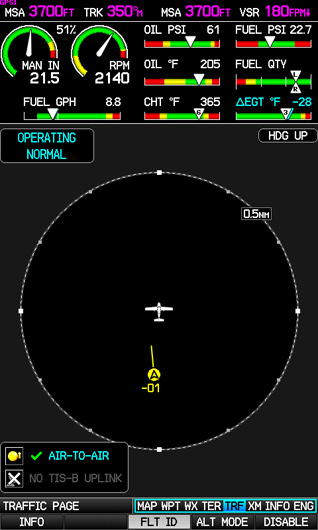

To help you keep nearby air traffic under surveillance, the G3X supports traffic with either a TIS (Traffic Information Service) via an interface with your Garmin GTX 23 ES Mode S transponder or a GTS 800 active traffic system. Traffic displays in 3D on the PFD’s synthetic vision (SVX) with directional arrow indications to help point out traffic at a glance. Traffic also displays in 2D right on the MFD’s moving map page or a separate dedicated traffic page can be configured. And visual and audible alerts of nearby traffic help keep your eyes outside of the aircraft.

Reversionary Mode
Reversionary Mode

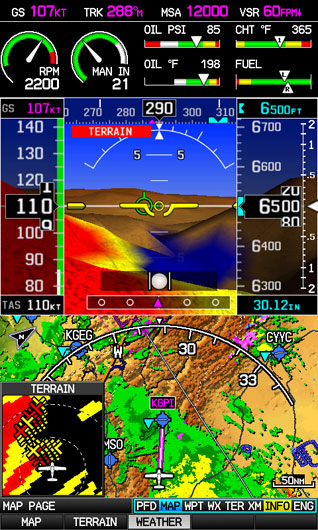

If your installation includes a separate PFD and MFD, you’ll have additional reversionary backup should a failure of either display occur. In reversionary mode, the remaining GDU combines critical flight instrumentation with engine readouts and navigation information in a single–screen consolidated presentation.

Advanced Avionics Integration
Advanced Avionics Integration

The G3X is natively integrated with our navigators including the popular new GTN series, GNS series avionics, as well as GTR/GNC series radios. This brings advanced integration including display of the flight plan from the GTN/GNS navigators as well as more detailed leg instructions such as holds and procedure turns.

In addition to advanced integration with Garmin’s navigators, the G3X will command compatible autopilots so you can fly like the pros. The G3X provides pitch and roll steering commands to the autopilot. And all this information is displayed and easily controlled using the softkeys and knobs on the PFD. It will even fly a preset Vertical navigation (VNAV) profile, that makes getting down to the desired altitude and distance from the airport, like the traffic pattern, a cinch. Even better, when combined with a GTN or GNS navigator, this tight integration provides near-GFC-700-like capability allowing pilots to couple the autopilot to fly the entire approach down to minimums.

See it in Action

ADS-B Weather
ADS-B Weather

Gain access to subscription-free aviation weather information on your G3X with the addition of a GDL 39R ADS-B receiver. The remote-mounted device features ADS-B "In" technology that allows it to receive Flight Information Service-Broadcast (FIS-B) weather information over the FAA's 978 MHz Universal Access Transceiver (UAT) uplink. You can easily access and display animated NEXRAD radar, METARs, TAFs, winds and temperatures aloft, PIREPs, NOTAMs and more right on your G3X display.

ADS-B Traffic
ADS-B Traffic

When equipped with GDL 39 ADS-B receiver, the G3X can receive and display ADS-B position reports directly from other aircraft in your vicinity. Because the FAA permits ADS-B broadcasts on 2 frequencies (978 UAT and 1090 ES), the GDL 39 contains both receivers so you can see a comprehensive view of all ADS-B "Out" equipped targets. In addition, the GDL 39 can receive Traffic Information Service-Broadcast (TIS-B) information that allows you to view the same dynamic traffic picture as ATC ground controllers. TIS-B information is available if your aircraft is either participating with an ADS-B "Out" solution, or within a certain range of another ADS-B "Out" participating aircraft in a service area. TargetTrend technology provides an easy-to-interpret picture of aircraft trajectories so you can better predict which may converge on your own, while SURF technology supports the display of ADS-B "Out" equipped surface targets.

Garmin Autopilot
Garmin Autopilot

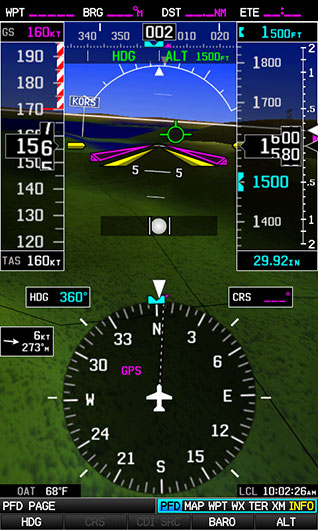

Developed specifically for experimental aircraft, the Garmin autopilot for G3X features advanced features like flight director, coupled approaches and auto-trim. The GSA 28 servo features a gear train with engagement clutch and ability to back drive the brushless DC motor, providing multiple levels of safety without the need to use a shear pin. It’s available as a single servo system for roll only autopilot or with 2 servos for both roll and pitch. With the optional GMC 305 and GMC 307 control panels, you’ll gain added features like level button (LVL), indicated airspeed hold (IAS), yaw damper (YD) and flight director (FD). It also provides additional redundancy in the unlikely event of a display loss. Speed scheduling normalizes the electric trim input controls so the pilot can provide the same level of controls input during slow and fast operations. Installation kits are available for RV-4/6/7/8/9/10 models as well as industry standard mounting.

Angle of Attack
Angle of Attack

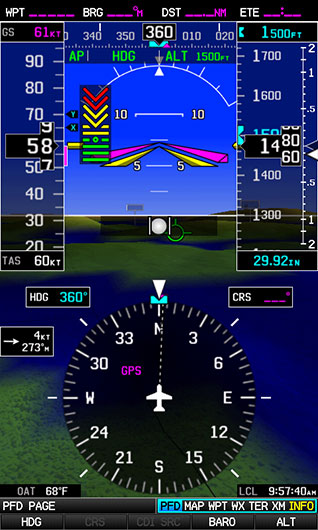

The Garmin Angle of Attack (AOA) system provides accurate, real-time measurement of wing performance to provide stall margin indication to the pilot both audibly and visually. The angle of attack probe is available with unheated pitot, with pilot-controllable heated pitot, or with automatic temperature regulating pitot that helps protect against inflight icing, helps save power and maintains a lower surface temperature when operating in stagnant air. Requires the GSU 25 ADAHRS for interface capability.

Frequently Asked Questions


Q: How many displays can the G3X support?
A: The G3X needs a minimum of one display and can support up to 3 displays.

Q: What engines can the G3X support?
A: The G3X can support 4 cylinder and 6 cylinder Lycoming and Continental engines. It can also support the Jabiru and Rotax 912 engines. Turbine engines are not supported.

Q: Does the engine instrument window show up all the time even if there are no engine instruments to show?
A: No. This window will only show up when an engine parameter has been configured for an input.

Q: How do I upgrade my G3X to have ADS-B "In"/"Out" capability?
A: The answer depends on a number of factors, like your full avionics installation and where you fly. Visit the Garmin ADS-B Academy for help selecting the solution that's right for you.
